Clean In Place
The clean-in-place (CIP) systems are easy-to-install, wall-mounted, stainless steel ozone system packages providing ozone-enriched water for superior water treatment and odor control applications. Serving applications from agri-food, fish storage, and dairy cases, to wineries, breweries, and butcher blocks, the CIP systems range in size and include everything necessary to get you up and running with ozone.
Features
- Corona discharge ozone generator
- Air preparation
- Controls
- Backflow prevention
- Venturi injector
- Stainless steel enclosure
- Ozone injection system
- Micro process controlled circuit board
- Plug-and-play operation
- UL and CE approved
Benefits
- Reduces energy and chemical use
- Produced on-site (no storage, mixing, or handling of chemicals)
- Ozone is approved by the FDA & USDA for food contact
Applications
- Cannabis grow facilities
- Wineries, breweries, hard cider
- Surface sanitation
- Seafood cases
- Butcher blocks
- Food processing
- Fishing vessels
- Produce misters
- Fish storage
- Process water purification
- Dairy cases
- Odor control
- Floors & walls

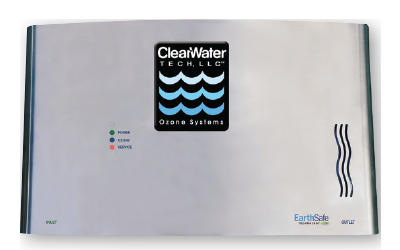

CIP20
The CIP20 is a compact, plug-and-play system that delivers dissolved ozone for a variety of water treatment and odor control applications. Use for surface sanitation, wineries, breweries, hydroponics, fishing vessels, and water features.
Dimensions: 10.55″ h x 17.12″ w x 2.57″ d, 5.4 lbs.
Ozone Output: 200 mg/hr
CIP260
The CIP260 system is designed for clean-in-place and hard surface water treatment applications. Easy to install, it features the CD12/AD ozone generator with a built-in air dryer, flow meter/vacuum gauge assembly with vacuum switch, injector manifold, check valve, and vacuum break (backflow prevention).
Ozone Output: 2.6 grams/hour @ 8SCFH with dry air

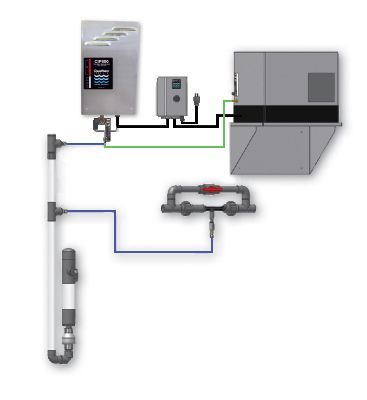

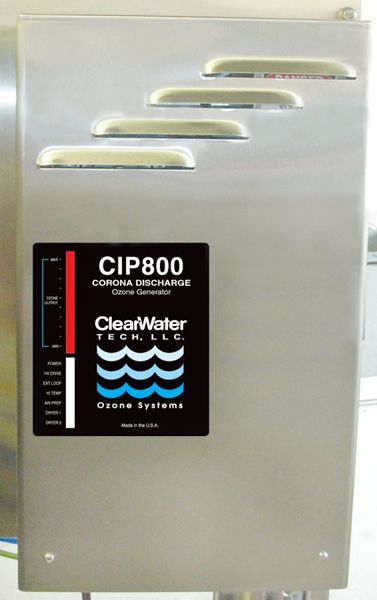

CIP800
ClearWater Tech offers the CIP800 system for clean-in-place and surface cleaning. Providing complete water disinfection without chemical residue throughout the facility. Applications include wineries, breweries, seafood cases, fishing vessels, and more.
Ozone Output:
8 grams/hour @ 8 SCFH, 3% by weight

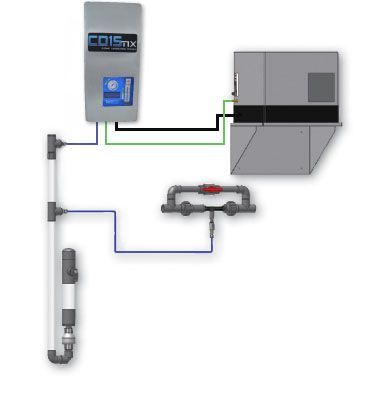

CIP1500
The CIP1500 for surface water treatment produces 15 grams per hour at five percent concentration by weight (5%), with oxygen feed gas. The system utilizes the Self-Resonating Technology (SRT), which allows the system to automatically adjust for pressure, flow, and other potential current variations to optimize ozone output and the system’s electronic stability.
Ozone Output:
15 grams/hour @ 8 SCFH, 5% by weight

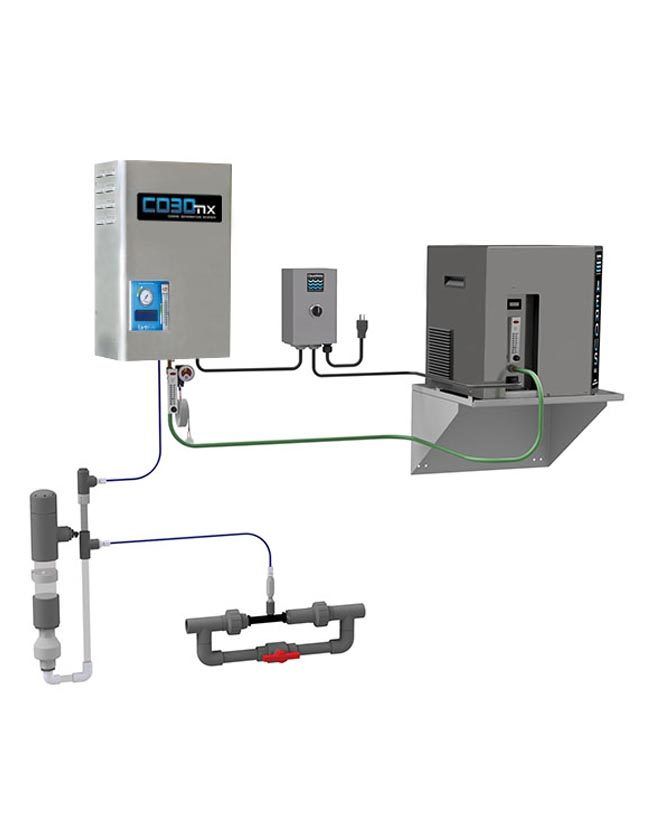

CIP3000
The CIP3000 is a complete wall-mounted ozone system providing ozone-enriched water for clean-in-place and hard surface water treatment. It is designed with a System Information and Diagnostics LCD display that provides a seamless user interface to control and monitor ozone production and system diagnostics. Available in various languages.
The CD3000 allows for universal power input and produces thirty grams per hour (30g/h) at five percent concentration by weight (5%) with oxygen feed gas.
Ozone Output:
30 grams/hour @ 15 SCFH, 5% by weight
Features
- Compact, wall-mounted design
- System Information and Diagnostics LCD display
- Z-bar mounting system
- Stainless steel enclosure
- Dual pressurized, user-serviceable reaction chamber
- Built-in pressure gauge and feed gas flow meter
- Universal regulated power supply 90-250VAC 47-63HZ
- Self-Resonating Technology (SRT)
- Safety – vacuum and pressure switch protected
- Thermal protection
- Auxiliary oxygen concentrator output control
- Manual ozone output control
- Proportional isolated 4-20mA output signal
- Programmable master alarm output for remote monitoring
- Oxygen concentrator
- Backflow prevention
- Efficient mass-transfer of ozone to off-gas venting and destruct
