Apex Series

  • Compact, wall-mounted
  • Automatic control
  • Air-cooled
  • Backflow prevention
  • Check valve assembly
  • LED display
  • 2” injector manifold

We took our most popular ozone generators and combined them with all the ancillary components that make up the perfect system. The Apex series is designed to make ordering the properly sized and designed package as simple as possible.

Features

Applications

  • Residential swimming pools
  • Commercial spas
  • Residential well water
  • Bottled water
  • Wastewater
  • Commercial laundry
  • Water features
  • Aquaculture
ClearWater Tech Apex I ozone system with UV2800 generator and venturi injector, providing 1 g/hr water treatment
ClearWater Tech Apex II ozone system with CD10/AD generator, built‑in air dryer, and injector manifold, 1.3 g/hr output
ClearWater Tech Apex III ozone system with CD12/AD generator, air dryer, injector manifold; outputs 2.6 g/hr
ClearWater Tech Apex 4 ozone system with CD10 generator, oxygen concentrator, injector manifold; outputs 4 g/hr.
ClearWater Tech Apex 6 ozone system with CD12 generator, oxygen concentrator, injector manifold; outputs 8 g/hr
ClearWater Tech Apex 7 ozone system with CD15nx generator, oxygen concentrator, injector manifold; outputs 15 g/hr
ClearWater Tech Apex VIII ozone system with oxygen-fed generator and injector manifold; outputs 30 g/hr

Products

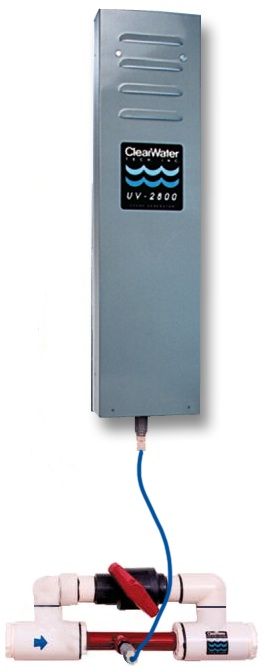

ClearWater Tech Apex I ozone system with UV2800 generator and venturi injector, providing 1 g/hr water treatment

Apex I


The Apex I ozone generator provides superior water treatment sanitation. Easy to install, it is designed with stainless steel construction, and includes the UV2800 ultraviolet ozone generator with venturi injector manifold.


Dimensions: 33″ h x 8.5″ w x 3.5″ d, 25 lbs.
Ozone Output: 1.0 grams/hour @ 0.1% by weight

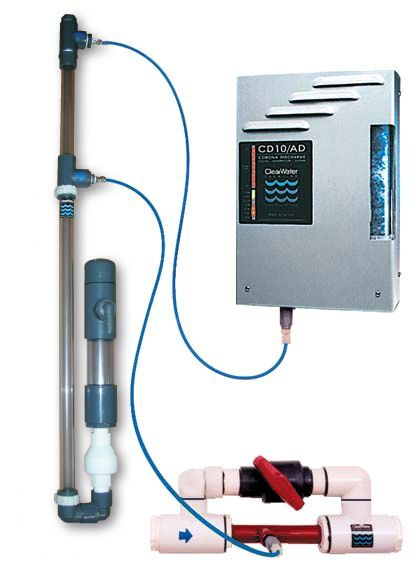

ClearWater Tech Apex II ozone system with CD10/AD generator, built‑in air dryer, and injector manifold, 1.3 g/hr output

Apex II


Perfect for residential swimming pools, commercial spas, and water features, the Apex II system includes the CD10/AD ozone generator with built-in air dryer, flow meter/vacuum gauge assembly with vacuum switch, injector manifold, check valve assembly, and vacuum break.


Dimensions: 19.5″ h x 11.5″ w x 5.0″ d, 15 lbs.
Ozone Output: 1.3 grams/hour @ 4 SCFH with dry Air

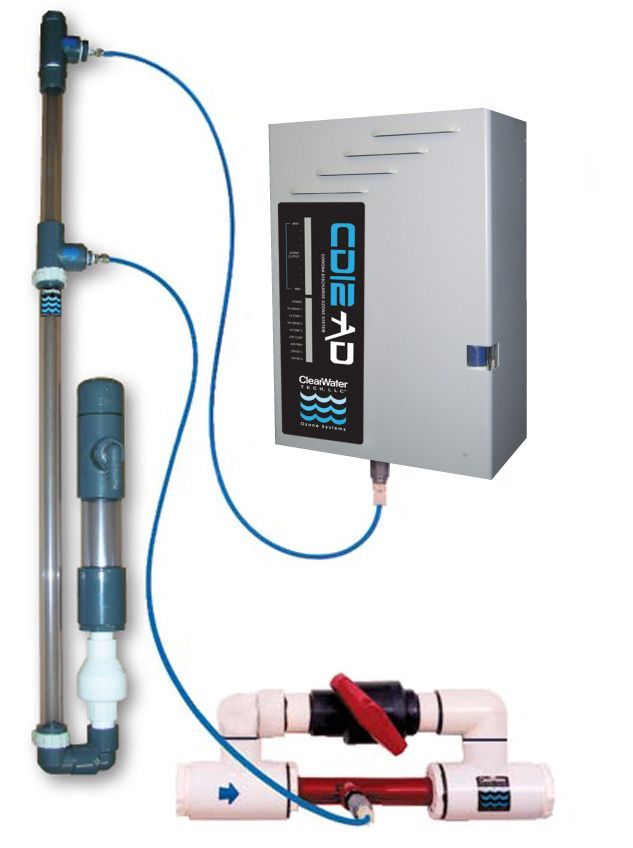

ClearWater Tech Apex III ozone system with CD12/AD generator, air dryer, injector manifold; outputs 2.6 g/hr

Apex III


The Apex III system from ClearWater Tech includes the CD12/AD ozone generator with a built-in air dryer, flow meter/vacuum gauge assembly with vacuum switch, injector manifold, check valve assembly, and vacuum break. Perfect for residential swimming pools, commercial spas, and water features.


Dimensions: 19.5″ h x 15.25″ w x 7.5″ d, 34 lbs.
Ozone Output: 2.6 grams/hour @ 8 SCFH with dry Air

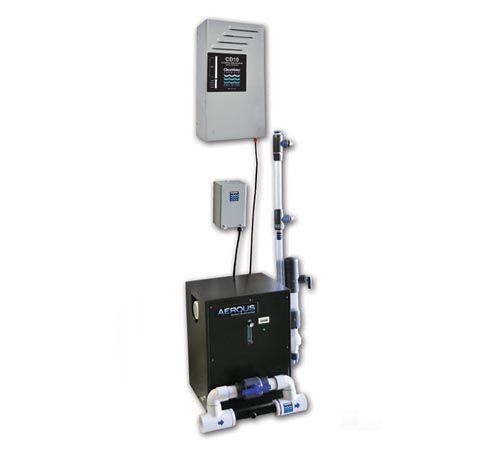

ClearWater Tech Apex IV ozone system with CD10 generator, oxygen concentrator, injector manifold; outputs 4 g/hr

Apex IV


The Apex IV system from ClearWater Tech includes the CD10 ozone generator, oxygen concentrator, interface box, vacuum break, injector manifold, check valve assembly, flow meter/vacuum gauge assembly with vacuum switch. This easy-to-install, wall-mounted system is perfect for residential swimming pools, commercial spas, and water feature applications.


Dimensions: 19.0″ h x 9.0″ w x 5.0″ d, 9.5 lbs.
Ozone Output: 4.0 grams/hour @ 4 SCFH with oxygen

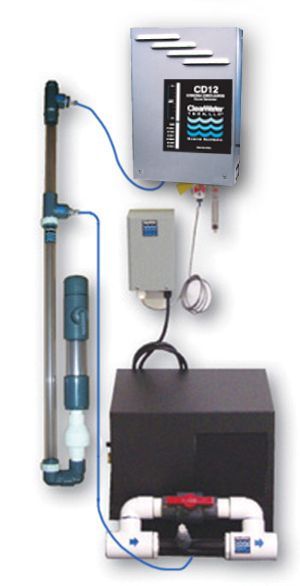

ClearWater Tech Apex VI ozone system with CD12 generator, oxygen concentrator, injector manifold; outputs 8 g/hr

Apex VI


The Apex VI system includes the CD12 ozone generator, oxygen concentrator, electrical interface box, injector manifold, check valve assembly, and flow meter/vacuum gauge assembly with vacuum switch. This easy to install, wall-mounted system is perfect for residential swimming pools, commercial spas, and water feature applications.


Dimensions: 21.50″ h x 11.50″ w x 5.0″ d, 15 lbs.
Ozone Output: 8 grams/hour @ 8 SCFH with oxygen

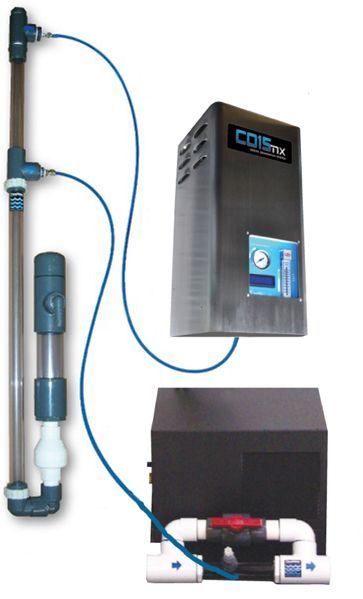

ClearWater Tech Apex VII ozone system with CD15nx generator, oxygen concentrator, injector manifold; outputs 15 g/hr

Apex VII


The Apex VII system includes the CD15nx ozone generator, oxygen concentrator, injector manifold, check valve assembly, and water back-flow prevention vacuum break. Easy to install, the Apex VII wall-mounted system is designed specifically for residential swimming pools up to 110,000 gallons and smaller commercial swimming pools up to 75,000 gallons.


Dimensions: 21.0″ h x 10.20″ w x 9.8″ d, 28 lbs.
Ozone Output: 15 grams/hour @ 7 SCFH with oxygen

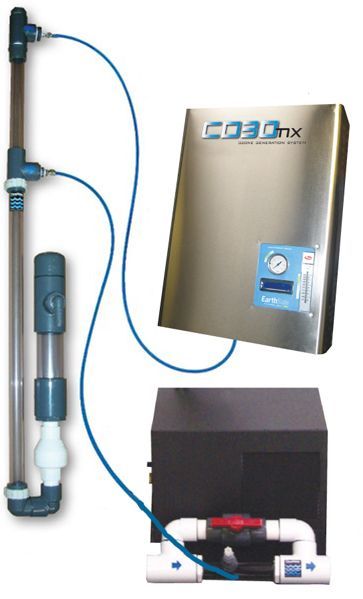

ClearWater Tech Apex VIII ozone system with oxygen-fed generator and injector manifold; outputs 30 g/hr

Apex VIII



The Apex VIII system includes the CD30nx ozone generator, oxygen concentrator, injector manifold, check valve assembly, and water back-flow prevention vacuum break. Easy to install, the Apex VIII wall-mounted system is designed specifically for residential swimming pools up to 250,000 gallons and commercial swimming pools up to 130,000 gallons.


Dimensions: 21.0″ h x 15.80″ w x 9.8″ d, 39 lbs.
Ozone Output: 30 grams/hour @ 15 SCFH with oxygen
